APPLICATIONS
- Measurement of flat, concave or convex surfaces
- Prism, corner cube, wedge angle & homogeneity measurements
- Measurement of machined, ceramic, and wafer/disk surfaces
- Wavefront analysis of optical systems & components
- Integration into OEM systems
|
|
MAIN FEATURES & BENEFITS
- Excellent versatility, stability and repeatability
- 1x to 6x zoom, focus and attenuation controls
- Vibration-insensitivity may be accomplished via ESDI’s IntelliPhase™ static spatial carrier acquisition and analysis software
- Compact, lightweight and rugged design
- Compatible with all industry standard 4″ (100mm) reference optics and accessories
- High accuracy measurements at an affordable price
- Configurations include horizontal, vertical look up and vertical look down
- Optional workstations for flat and short to long radius of curvature measurements
|

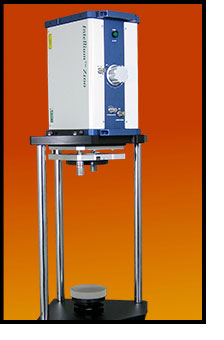

The Intellium™ Z100 interferometer provides non-contact measurement of flat or spherical surfaces along with transmitted wavefront measurements of optical components and assemblies. Measurements may be made using basic visual fringe inspection, static fringe analysis, or phase-modulated interferogram analysis. The Intellium™ Z100 may be integrated with ESDI’s world-renowned IntelliWave™ acquisition and analysis software to provide the end user with superior measurement and analysis capability. The Intellium™ Z100 provides the versatility and flexibility to handle today’s advanced applications with an unrivaled cost – performance benefit.
